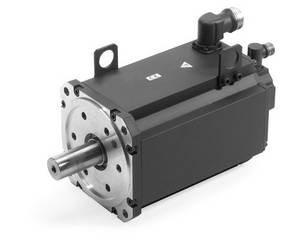

QSY 190 EcoDyn

    Specifications

    Motor

    QSY 190 C EcoDyn

    QSY 190 D EcoDyn

    QSY 190 F EcoDyn

    QSY 190 K EcoDyn

    Rated voltage UN

    427 V/420 V

    421 V/412 V

    408 V/404 V

    399 V/396 V

    Rated power output PN

    7.2 kW/6.5 kW

    9.6 kW/8.6 kW

    9.9 kW/8.9 kW

    12.2 kW/11.0 kW

    Rated shaft speed nN

    3 000 min-1 (in EcoDyn mode)

    Rated torque MN1)

    23.0 Nm/20.7 Nm

    30.6 Nm/27.5 Nm

    31.5 Nm/28.4 Nm

    39.0 Nm/35.1 Nm

    Rated current IN1)

    11.8 A/10.6 A

    14.4 A/13.0 A

    15.0 A/13.5 A

    20.2 A/18.2 A

    Stall torque M01)

    28.0 Nm

    38.0 Nm

    47.6 Nm

    62.5 Nm

    Stall current I01)

    14.0 A

    18.1 A

    22.7 A

    29.8 A

    Max. speed nmax

    3 900 min-1 (in EcoDyn mode)

    Max. torque Mmax2)

    85 Nm

    107 Nm

    150 Nm

    240 Nm

    Max. current Imax2)

    50.2 A

    62.9 A

    88.4 A

    134.3 A

    Weight m

    29.0 kg

    37.0 kg

    33.5 kg

    41.5 kg

    42.5 kg

    50.5 kg

    61 kg

    69.0 kg

    Rotor inertia J

    106 kgcm2

    115 kgcm2

    133 kgcm2

    142 kgcm2

    190 kgcm2

    199 kgcm2

    290 kgcm2

    299 kgcm2

    Brake

    Rated voltage UBr

    Rated current IBr

    Holding torque MBr

    Without

    With

    24 V DC

    1.38 A

    70 Nm

    Without

    With

    24 V DC

    1.38 A

    70 Nm

    Without

    With

    24 V DC

    1.38 A

    70 Nm

    Without

    With

    24 V DC

    1.38 A

    70 Nm

    ID for motor with ERN 1387

    ID for motor with ECN 1313

    ID for motor with EQN 1325

    392023-13

    392023-83

    392023-63

    392023-14

    392023-84

    392023-64

    392024-13

    392024-83

    392024-63

    392024-14

    392024-84

    392024-64

    388244-13

    388244-83

    388244-63

    388244-14

    388244-84

    388244-64

    392025-13

    392025-83

    392025-63

    392025-14

    392025-84

    392025-64

    1) At 100 K 2) Max. 200 ms

    In italics: Data for motors with ECN 1313 or EQN 1325 (rated torque reduced by 10 %)
