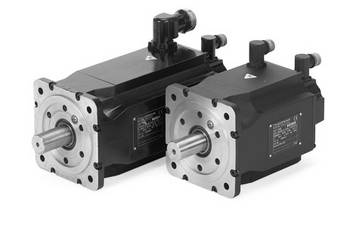

QSY 155 EcoDyn

    Specifications

    Motor

    QSY 155 B EcoDyn

    QSY 155 C EcoDyn

    QSY 155 D EcoDyn

    QSY 155 F EcoDyn

    Rated voltage UN

    417 V/412 V

    420 V/415 V

    412 V/407 V

    399 V/397 V

    Rated power output PN

    3.5 kW/3.1 kW

    5.0 kW/4.5 kW

    5.7 kW/5.1 kW

    6.0 kW/5.4 kW

    Rated shaft speed nN

    3 000 min-1 (in EcoDyn mode)

    Rated torque MN1)

    11.0 Nm/9.9 Nm

    16.0 Nm/14.4 Nm

    18.1 Nm/16.3 Nm

    19.2 Nm/17.3 Nm

    Rated current IN1)

    5.6 A/5.0 A

    8.2 A/7.4 A

    9.1 A/8.2 A

    9.8 A/8.8 A

    Stall torque M01)

    13.0 Nm

    17.7 Nm

    21.6 Nm

    26.1 Nm

    Stall current I01)

    6.5 A

    8.5 A

    10.6 A

    12.8 A

    Max. speed nmax

    4 200 min-1 (in EcoDyn mode)

    Max. torque Mmax2)

    39 Nm

    52 Nm

    64 Nm

    90 Nm

    Max. current Imax2)

    21.2 A

    27.6 A

    35.0 A

    49.5 A

    Weight m

    15.0 kg

    18.0 kg

    17.5 kg

    20.5 kg

    20.0 kg

    23.0 kg

    25.0 kg

    28.0 kg

    Rotor inertia J

    33 kgcm2

    35 kgcm2

    43 kgcm2

    45 kgcm2

    54 kgcm2

    56 kgcm2

    75 kgcm2

    77 kgcm2

    Brake

    Rated voltage UBr

    Rated current IBr

    Holding torque MBr

    Without

    With

    24 V DC

    1.04 A

    40 Nm

    Without

    With

    24 V DC

    1.04 A

    40 Nm

    Without

    With

    24 V DC

    1.04 A

    40 Nm

    Without

    With

    24 V DC

    1.04 A

    40 Nm

    ID for motor with ERN 1387

    ID for motor with ECN 1313

    ID for motor with EQN 1325

    339880-13

    339880-83

    339880-63

    339880-14

    339880-84

    339880-64

    365308-13

    365308-83

    365308-63

    365308-14

    365308-84

    365308-64

    339881-13

    339881-83

    339881-63

    339881-14

    339881-84

    339881-64

    339882-13

    339882-83

    339882-63

    339882-14

    339882-84

    339882-64

    1) At 100 K 2) Max. 200 ms

    In italics: Data for motors with ECN 1313 or EQN 1325 (rated torque reduced by 10 %)
