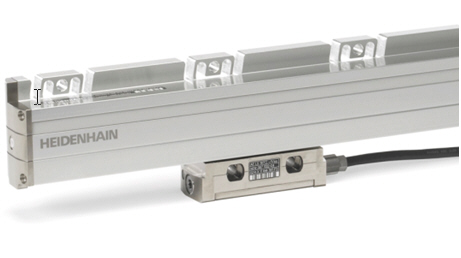

LS 187C 1740 5.0 C001 .. I 4ZS14 ~1Vpp 2F 01 ..

Ident number	526974-17
Measuring length	1740 mm
Accuracy grade	± 5.0 µm
Grating period	20.000 µm
Fastening type	Screw-on strip integrated
Output signal	sinusoidal voltage signals (1 Vpp)
Reference mark position	Distance-coded reference marks with nominal increment 1000 x grating period
Further reference marks	none
Power supply	5V+-5%
Electrical connection	Flange socket, male, 14-pin
Special characteristics, linear encoder	none
