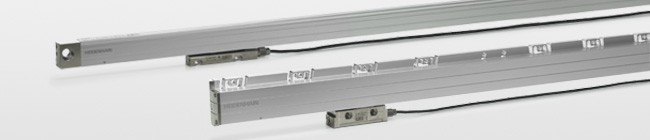

Linear encoders for numerically controlled machine tools
Linear encoders from HEIDENHAIN for numerically controlled machine tools can be used nearly everywhere. They are ideal for machines and other equipment whose feed axes are in a servo loop, such as milling machines, machining centers, boring machines, lathes and grinding machines. The beneficial dynamic behavior of the linear encoders, their high permissible traversing speed, and their acceleration in the direction of measurement predestine them for use on highly-dynamic conventional axes as well as on direct drives.
Linear encoders with slimline scale housing
The linear encoders with slimline scale housing are designed for limited installation space. Larger measuring lengths and higher acceleration loads are made possible by using mounting spars or clamping elements.
Accuracy grade | Measuring length ML | Incremental signals; Signal period | Absolute position values | Model | |
Absolute Linear Encoders for Safety-Related Applications | ±5 μm ±3 μm | 70 mm to 2040 mm | - | EnDat 2.2/22 DQ 01 | LC 415 LC 495 S |
Absolute position measurement • Glass scale | ±5 μm ±3 μm | 70 mm to 2040 mm | - 1 Vpp; 20 μm | EnDat 2.2/22 EnDat 2.2/02 DQ 01 Fanuc 05 Mit 03-04 | |
Incremental linear measurement with very high repeatability • Steel scale • Small signal period | ±5 μm ±3 μm | 50 mm to 1220 mm | 1 Vpp; 4 μm | - | LF 485 |
Incremental linear measurement • Glass scale | ±5 μm ±3 μm | 70 mm to 2040 mm | 1 Vpp; 20 μm TTL; to 1 μm | - - | LS 487 LS 477 |
Linear encoders with full-size scale housing
The linear encoders with full-size scale housing are characterized by their sturdy construction, high resistance to vibration and large measuring lengths. The scanning carriage is connected with the mounting block over an oblique blade that permits mounting both in upright and reclining positions with the same protection rating.
Accuracy grade | Measuring length ML | Incremental signals; Signal period | Absolute position values | Model | |
Absolute Linear Encoders for Safety-Related Applications | ±5 μm ±3 μm | 140 mm to 4240 | - | EnDat 2.2/22 DQ 01 | LC 115 LC 195 S |
Absolute position measurement • Glass scale | ±5 μm ±3 μm | 140 mm to 4240 mm | - 1 Vpp; 20μm | EnDat 2.2/22 EnDat 2.2/02 DQ 01 Fanuc 05 Mit 03-04 | LC 115 LC 185 LC 195 S LC 195 F LC 195 M |
Absolute position measurement for large measuring lengths • Steel scale tape | ±5 μm | 440 mm to 28040 mm | - 1 Vpp; 40 μm | EnDat 2.2/22 EnDat 2.2/02 | LC 201 - single-section LC 201 - multi-section |
Incremental linear measurement with very high repeatability • Steel scale • Small signal period | ±3 μm ±2 μm | 140 mm to 1240 mm | 1 Vpp; 4 μm | - | LF 185 |
Incremental linear measurement • Glass scale | ±5 μm ±3 μm | 140 mm bis 3040 mm | 1 Vpp; 20 μm TTL; to 1 μm | - - | LS 187 LS 177 |
Incremental linear measurement for large measuring lengths • Steel scale tape | ±5 μm | 440 mm to 30040 mm Up to 72040 mm measuring length upon request | 1 Vpp; 40 μm | - | LB 382 - single-section LB 382 - multi-section |
