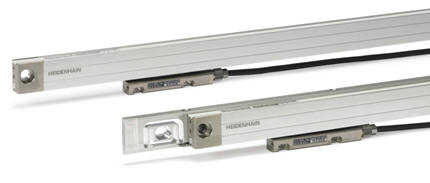

Incremental linear encoders with slimline scale housing LF 485 series
LF 485 150 5.0 R25 R25 B 4ZS14 .. 0.00 ~1Vpp 2F 01 .. S10 4.000
|
Ident number
|
635326-03 |
| Measuring length |
150 mm
|
| Accuracy grade |
± 5.0 µm
|
| Grating period |
8.000 µm
|
| Signal period |
4.000 µm
|
| Fastening type |
End block + mounting spar
|
| Output signal |
sinusoidal voltage
signals (1 Vpp)
|
| Reference mark position |
25 mm distance from the
beginning of the
measuring length with two
reference marks
|
| Further reference marks |
25 mm distance from end
of measuring length with
two reference marks
|
| Power supply |
5V+-5%
|
| Electrical connection |
Flange socket, male, 14-pin
|
| Special characteristics, linear encoder |
none |
