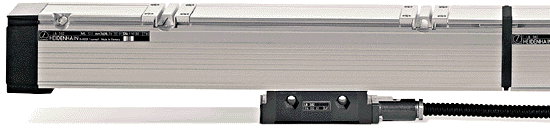

Incremental linear measurement for large measuring lengths LB 382 series single-section
LB 382 1240 5.0 ML/2 .. S 52S12 .. 0.00 ~1Vpp 39 01 ..
|
Ident number
|
315416-19 |
| (complete unit, one-piece) Measuring length |
1240 mm
|
| Accuracy grade |
± 5.0 µm
|
| Grating period |
40.000 µm
|
| Fastening type |
mirrored
|
| Output signal |
sinusoidal voltage signals
(1 Vpp)
|
| Reference mark position |
in the middle of the
measuring length
|
| Power supply |
5V+5%-10%
|
| Electrical connection |
separate adapter cable
|
| Special characteristics, linear encoder |
none |
