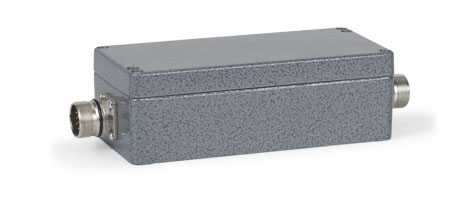

IBV 600 Series

    Specifications

    Specifications

    IBV 600

    IBV 660 B

    Input

    1 VPP

    Electrical connection

    M23 flange socket (female) 12-pin

    Cable length

    ≤ 60 m at UP > 4.9 V

    ≤ 30 m at Iencoder ≤ 120 mA

    Interpolation1)

    None

    25-fold, 50-fold, 100-fold, 200-fold, 400-fold

    Input frequency1) for interpolation

    Nominal values2)

    None

    600 kHz

    2-fold

    25-fold

    100 kHz

    50 kHz

    25 kHz

    12.5 kHz

    50-fold

    50 kHz

    25 kHz

    12.5 kHz

    6.25 kHz

    100-fold

    25 kHz

    12.5 kHz

    6.25 kHz

    3.12 kHz

    200-fold

    12.5 kHz

    6.25 kHz

    3.12 kHz

    1.56 kHz

    400-fold

    6.25 kHz

    3.12 kHz

    1.56 kHz

    0.78 kHz

    Output

      TTL (non-clocked)

    TTL (clocked)

    Electrical connection

    M23 flange socket (male) 12-pin

    Cable length

    ≤ 100 m ( ≤ 50 m)

    Edge separation a

    ≥ 0.200 µs

    ≥ 0.075 µs

    ≥ 0.175 µs

    ≥ 0.370 µs

    ≥ 0.760 µs

    Reference mark signal1)

    Pulse width 90° elec. or 270° elec.

    Fault indication1)

    through fault detection signal or, in addition, Ua1/Ua2 high impedance

    Power supply

    5 V ± 5 %

    Current consumption3)

    ≤ 85 mA

    ≤ 120 mA

    Operating temperature

    Storage temperature

    0 °C to 70 °C

    –30 °C to 80 °C

    Vibration 50 to 2 000 Hz

    Shock 11 ms

    ≤ 10 m/s2

    ≤ 300 m/s2

    Degree of protection

    IP 65

    Weight

    Approx. 0.7 kg

    Bold: This version is the factory default setting

    1) Adjustable

    2) The actual input frequency can be up to 5 % lower. Exceeding this limit results in failure

    3) Not including the current consumption of the encoder (see encoder brochure) and without output load
    (80 mA with recommended input circuitry)
