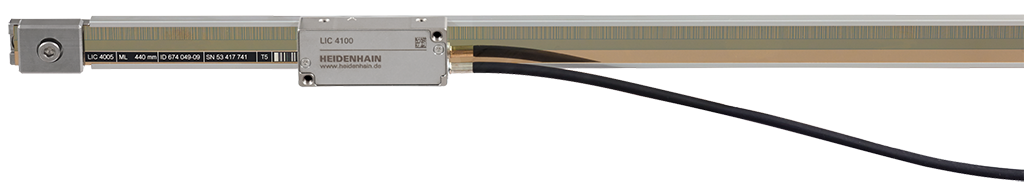

LIC 4100 series

Exposed linear encoders consist of a measuring standard and a scanning head. Please select these two components from the lists. .

ModelBaseline errorSubstrate and mountingInterpolation errorMeasuring length
Accuracy gradeIntervall
LIC 4113
LIC 4193
± 3 μm
± 5 μm

≤ ± 0.275 μm/ 10 mm

Glass or glass ceramic scale, bonded to the mounting surface

± 20 nm240 mm to 3040 mm
LIC 4115
LIC 4195
± 5 μm≤ ± 0.750 μm/ 50 mm (typ.)Steel scale tape drawn into aluminum extrusions and tensioned ± 20 nm140 mm to 28440 mm
LIC 4117
LIC 4197
± 3 μm
± 5 μm
± 15 μm
≤ ± 0.750 μm/ 50 mm (typ.)Steel scale tape drawn into aluminum extrusions and fixed ± 20 nm240 mm to 6040 mm
LIC 4119
LIC 4199
± 3 μm
± 15 μm
≤ ± 0.750 μm/ 50 mm (typ.)Steel scale tape, cemented on mounting surface ± 20 nm70 mm to 1020 mm
LIC 4119 FS± 3 μm
± 15 μm
≤ ± 0.750 μm/ 50 mm (typ.)Steel scale tape, cemented on mounting surface ± 20 nm70 mm to 1820 mm

LIC 3100 series

Exposed linear encoders consist of a measuring standard and a scanning head. Please select these two components from the lists. .

TypBaseline errorSubstrate and mountingInterpolation errorMeasuring lenght
Accuracy gradeIntervall
LIC 3117
LIC 3197
± 15 μm

≤ ± 0,750 μm/ 50 mm (typ.)

Steel scale tape drawn into aluminum extrusions and tensioned

± 100 nmup to 10 meters
LIC 3119
LIC 3199
± 15 μm≤ ± 0,750 μm/ 50 mm (typ.)Steel scale tape, cemented on mounting surface± 100 nmup to 10 meters

LIC 2100 series

Exposed linear encoders consist of a measuring standard and a scanning head. Please select these two components from the lists. .

ModelBaseline errorSubstrate and mountingInterpolation errorMeasuring length
Accuracy gradeIntervall
LIC 2117
LIC 2197
± 15 μm



Steel scale tape drawn into aluminum extrusions and fixed

± 2 μm120 mm to 3020 mm
LIC 2119
LIC 2199
± 15 μmSteel scale tape, cemented on mounting surface ± 2 μm120 mm to 3020 mm
