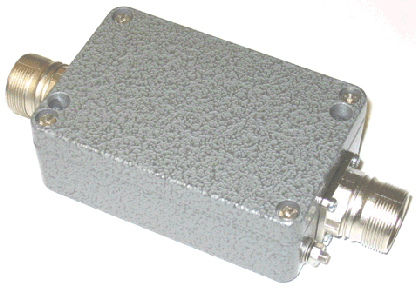

IBV 100, EXE 100, and IBV 3000 series – Signal converters with incremental interface at the input and output
IBV 102 TTLx50 40.00 RV OT MI 27B12 27S012
|
Ident number
|
536422-20 |
| Input signal |
sinusoidal voltage
signals (1 Vpp)
|
| Electrical connection |
Flange socket M23, female, 12-pin
|
| Output signal |
Square-wave signals, TTL
levels with 50-fold
interpolation
|
| Electrical connection 2 |
Flange socket M23, male, 12-pin
|
| Max. scanning frequency |
40.00 kHz
|
| Reference mark |
90°
|
| Fault detection signal |
for disturbance LOW
|
| Reversal hysteresis |
with
|
| Power supply |
5 V (+-5 %)
|
| Pin configuration |
D294999
|
| Pin configuration 2 |
D294999
|
| Degree of protection |
IP65 (EN60529)
|
| Operating temperature |
0/+70 °C
|
| Special characteristics, IBV/EXE/IDP |
none |
